Rotary Parking

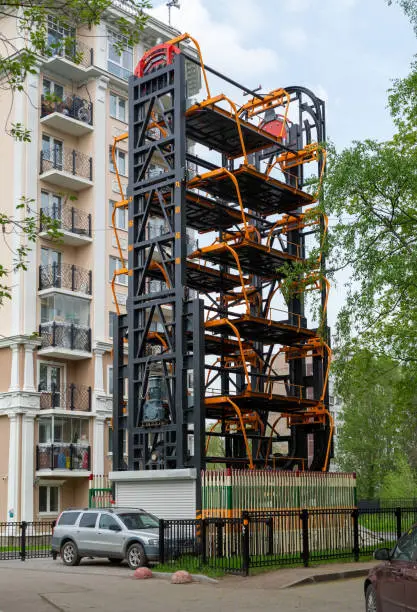

Rotary parking systems provide the greatest savings in parking space that allows you to park up to 16 SUVs or 20 Sedans in only 2 conventional parking spaces. Thus, they multiply parking capacity up to 10 times compared to traditional parking
The system is independent, no parking attendant is required. By inputting a pallet number or swiping anaccess card, the system identifies your vehicle automatically and find the fastest path to deliver your vehicle down to ground either clockwise or counter clockwise.
On a ground area of 5.5 mt x 6.5 mt we can park 20 Sedans and in 5.7 mt x 6.5 mt we can park 16 SUV’s
Advantages at a glance
Excellent solution where ground parking space is scarce, up to 10 times space saving than conventional surface parking
System has modular design and is infinitely scalable by adding in modules
Intelligent software ensures efficient retrieval times choosing shortest path in retrieval mode
Self- parking possible without the need for any system operator
Possible to relocate and re install
User-friendly touch screen HMI control panel
No need for complicated ventilation system or expensive lighting
Each parking space is independently accessed
The façade of the system can be used for advertisement
Optimal ROI and short payback period
Produces less emissions resulting in a lower environmental impact
Highlights
- SUV system comes in 8, 10, 12, 16 car models and Sedan system 8, 10, 12, 16, 20
- Average retrieval time – ranges from 100 to 160 seconds
- Carrying capacity per car available for Sedan system 1800 kgs and SUV 2300 kgs
- Controlled by intelligent PLC based controller
- German motors, Alloy steel chains with more than 10 safety factor
- Car retrieval at power failure possible
- Door feature optional. Automatically shuts during system running
- Emergency stop button
- Rotates both directions for optimal efficiency
System Features
Rotary parking is ideal solution for a wide range of applications – from public urban areas, residential and office buildings, hotels, hospitals, shopping centres, car showrooms, to large parking lots.
You may drive the car onto the empty pallet at ground, and then press the operation button. Another empty pallet would automatically travel down to the entrance for the next vehicle.
During retrieval of the car, simply press the pallet number or swipe the parking card, the system will automatically choose the shortest way to move the vehicle down to the entrance, then the driver can drive the vehicle out.

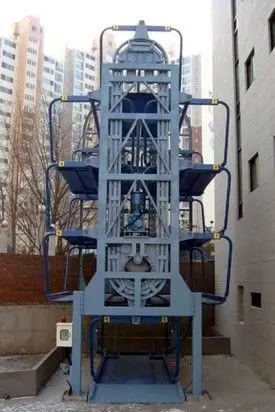

Motor drives the transmission mechanism with reducer; parking pallets/platforms are installed with regular intervals on the traction chain. When the motor starts, platforms rotate with the traction chain to facilitate parking and retrieving cars.
