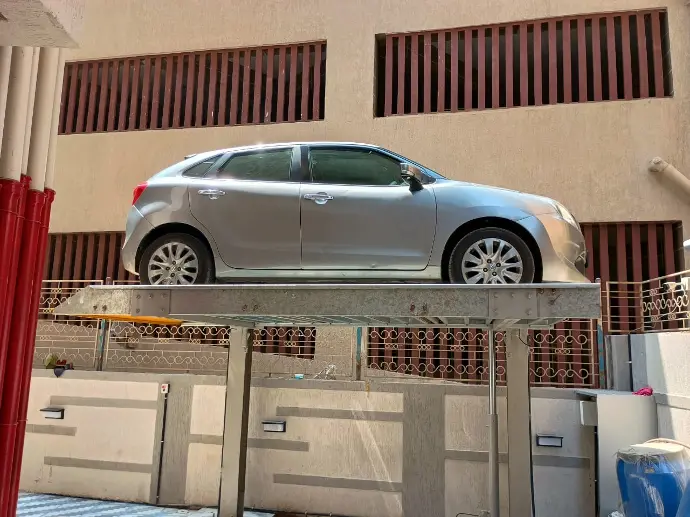

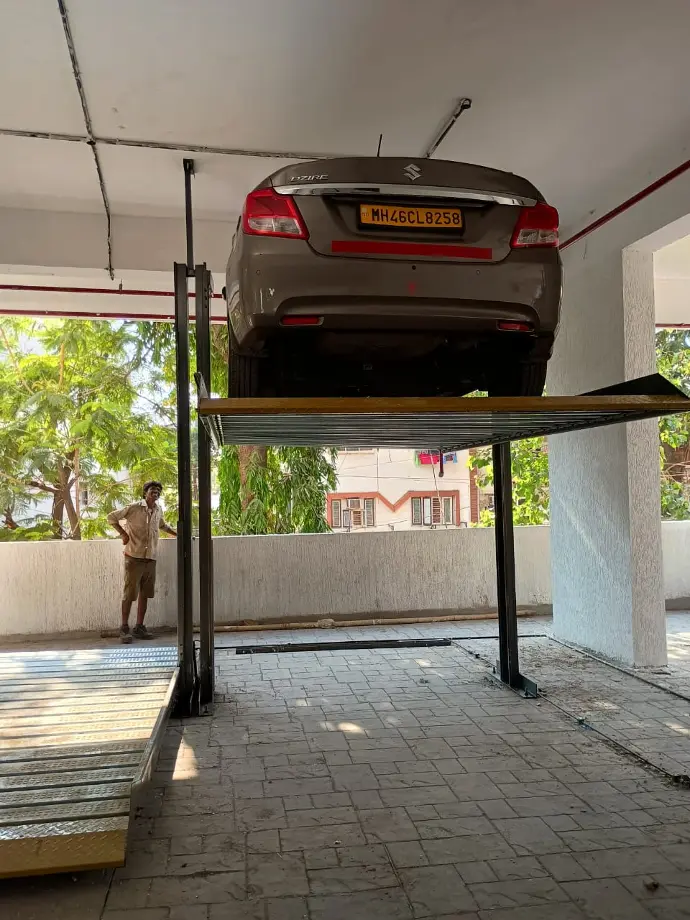

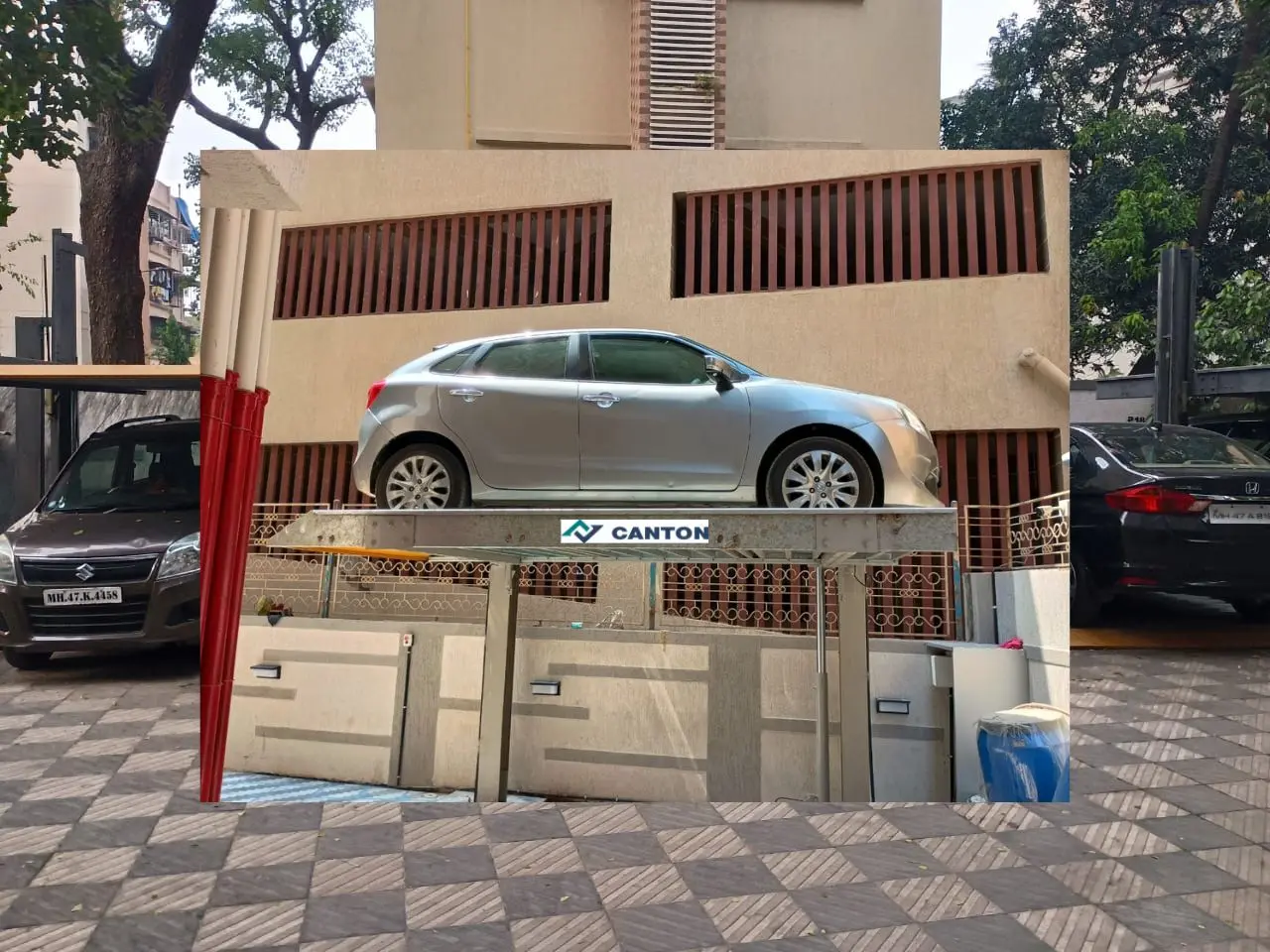

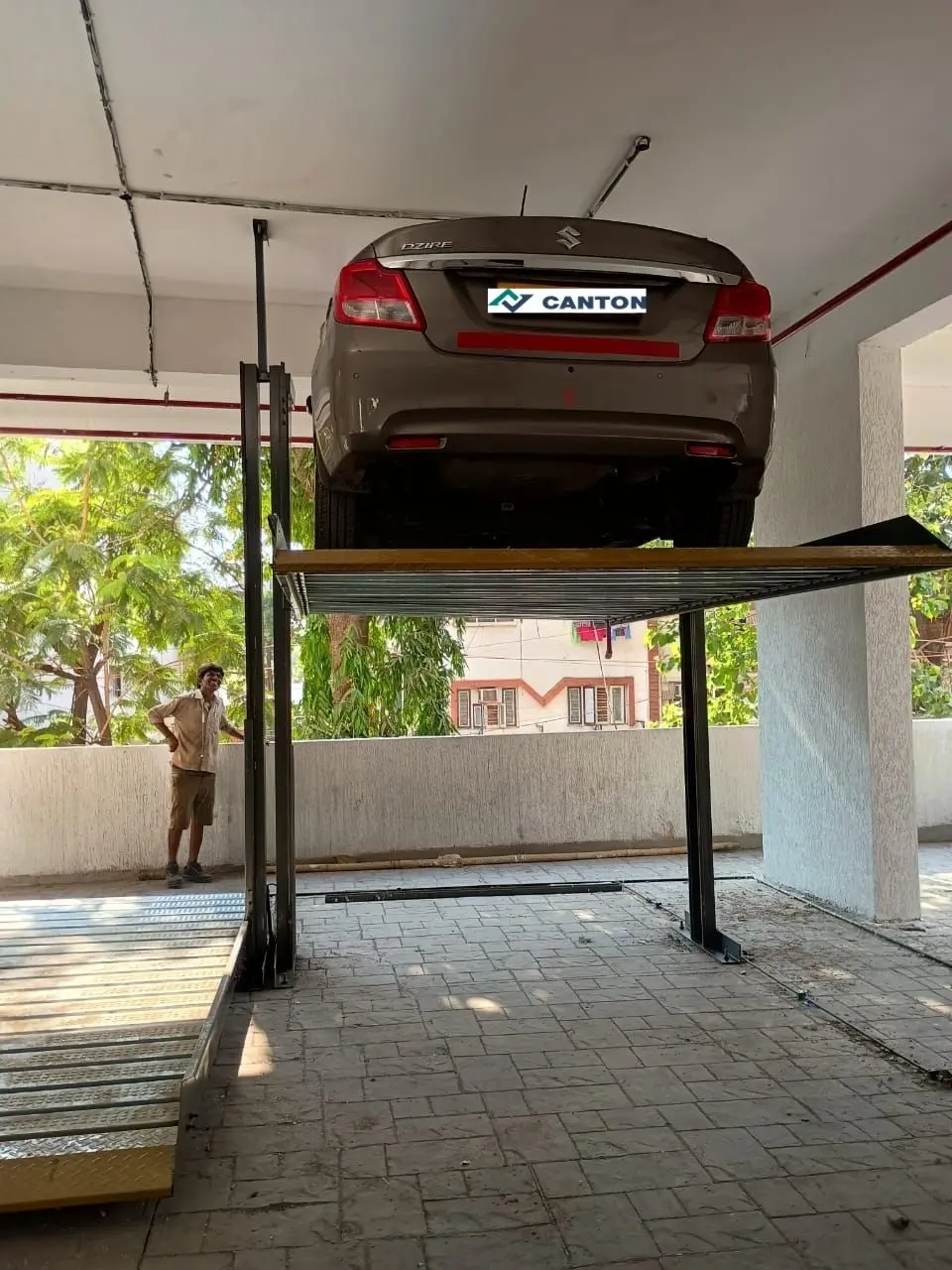

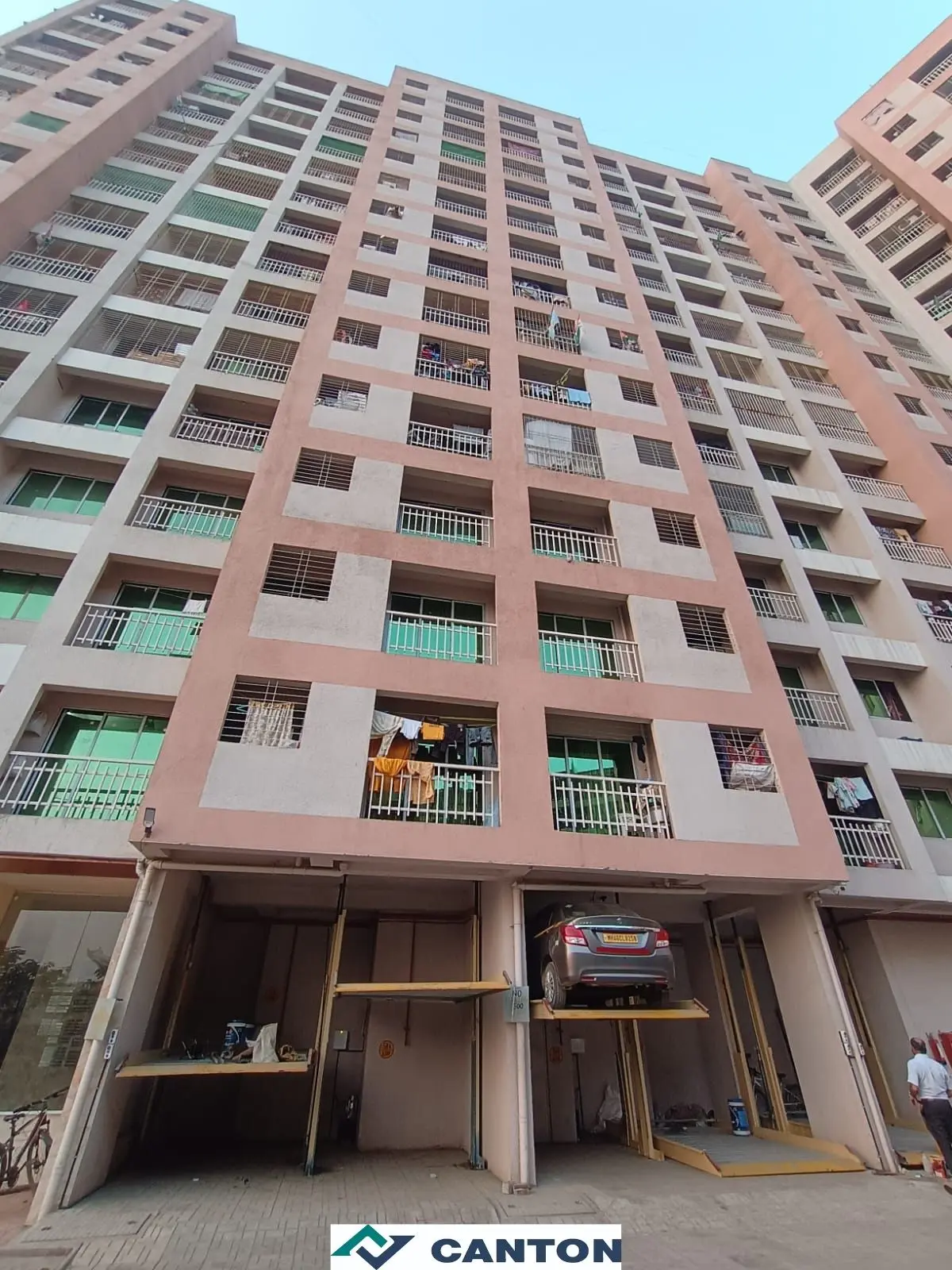

Dependent Stack Car Parking Systems

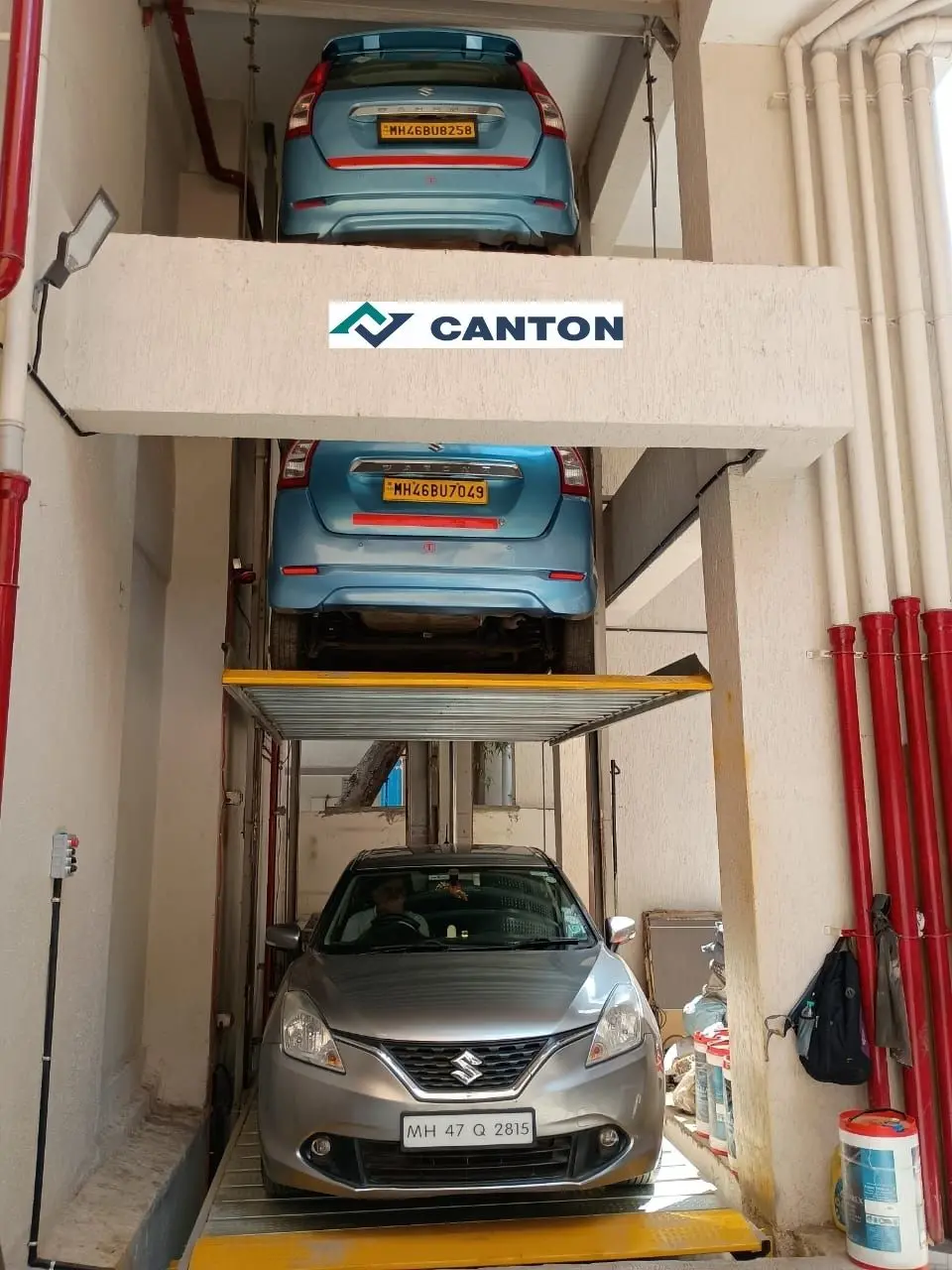

The simplest form of car stacker, where the lower car(s) need to be moved in order to retrieve the upper car(s). The two-level car stacker system effectively doubles the available parking space and the three level triples parking capacity used in one location, saving you room for your parking areas.

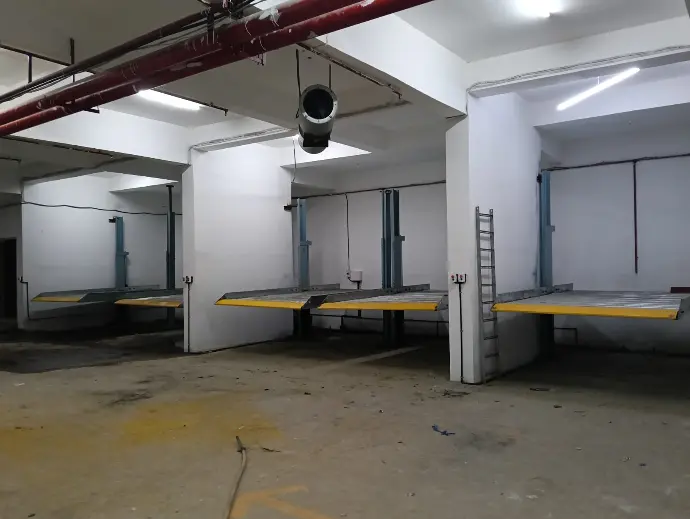

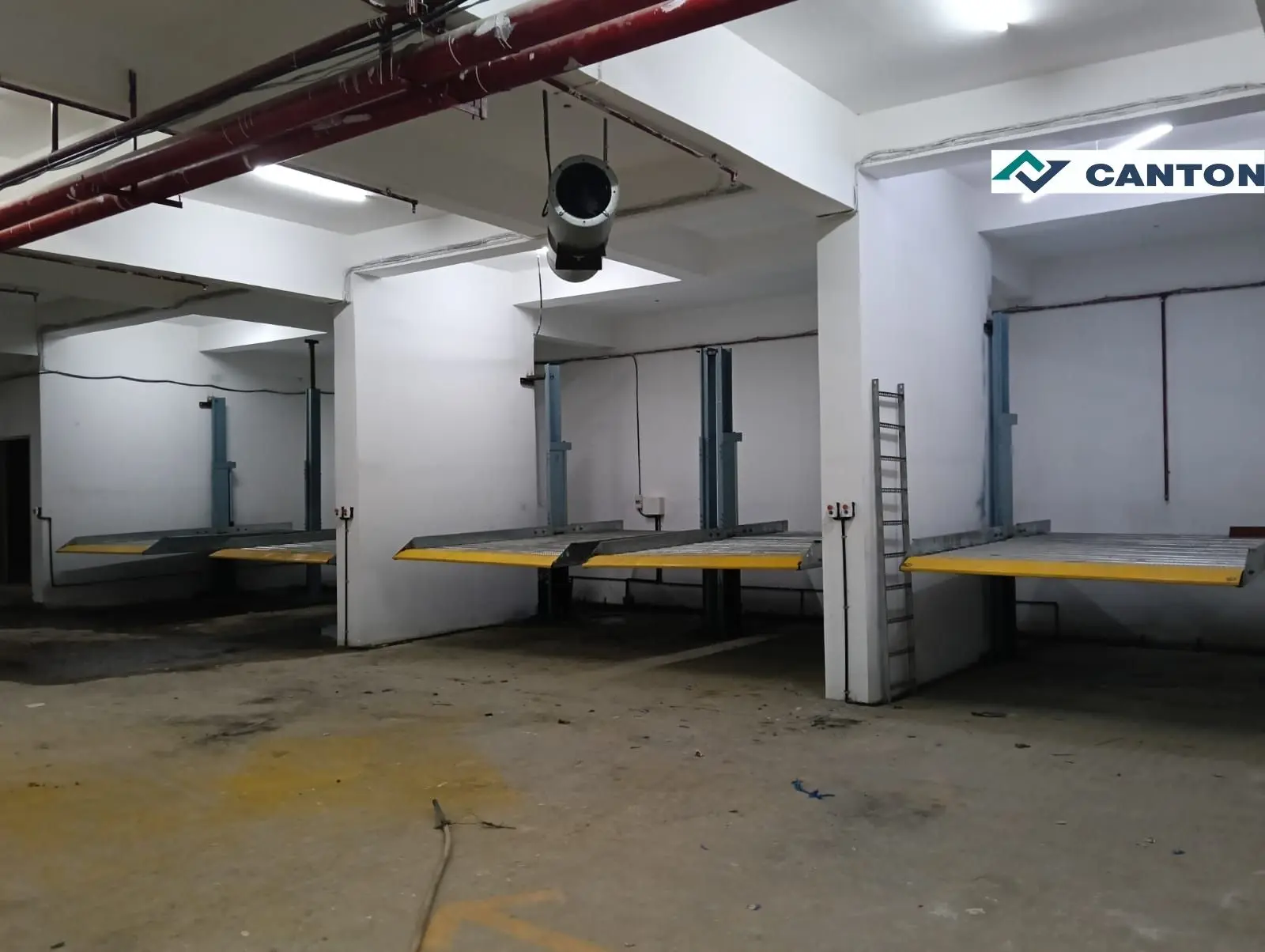

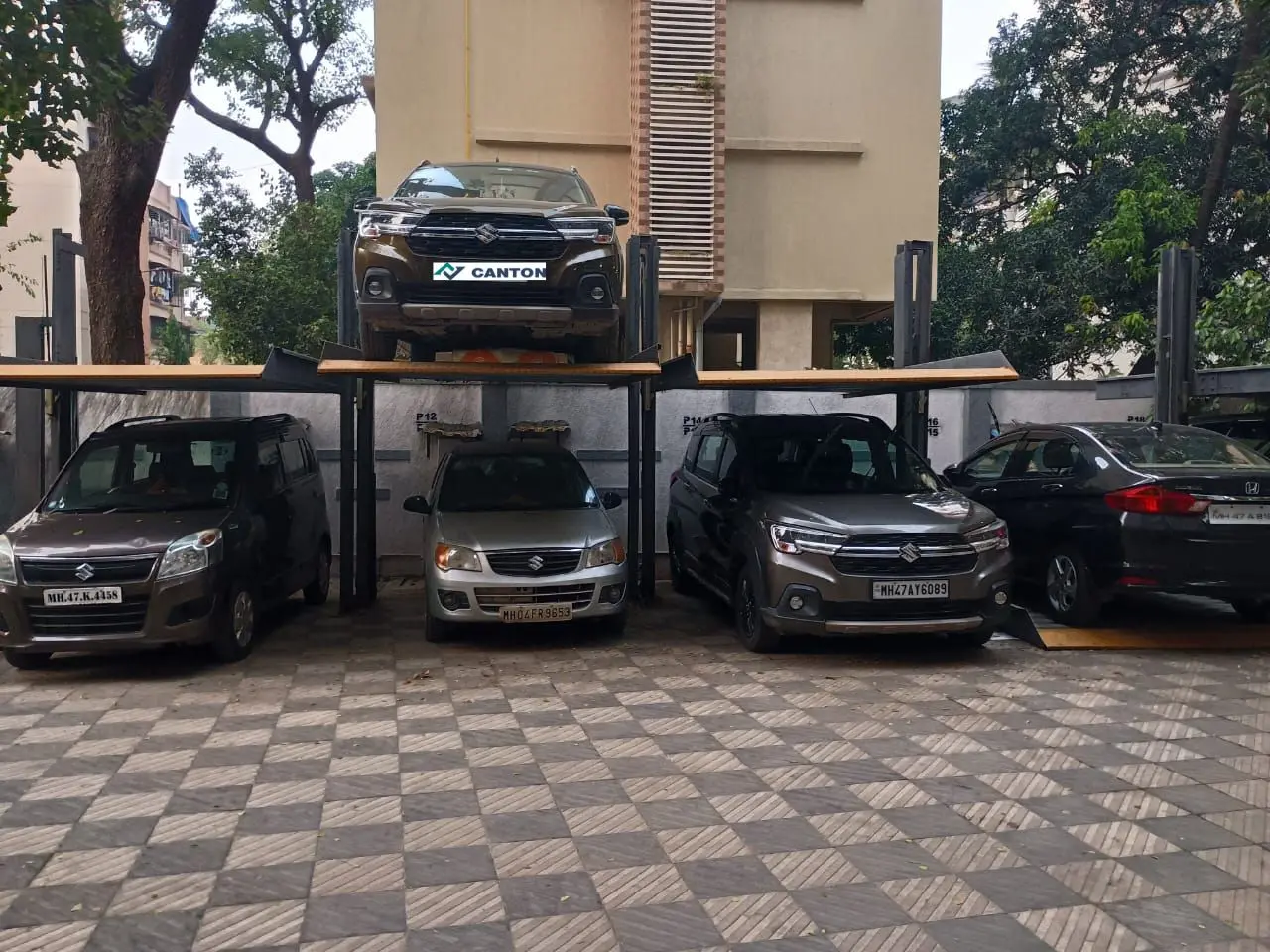

These systems can be installed inside or outside quickly and, if required, dismantled and moved to a new location. The top platform can be fixed at different heights to accommodate for various vehicles & ceiling roof heights. Stackers can be banked together side by side or in tandem or even multiple units one behind the other, to increase the number of cars in a given space.
FEATURES
Can be installed in compact areas
Only two hours required to install
No special construction required for installation
Silent in operation
Control pendant can be conveniently located for remote operations. Key switch in control pendant
Minimum operating & maintenance cost
Hydraulic, Mechanical and Electrical safety devices included
Easy to relocate & dismantle
Platform lowering possible in case of power failure or any kind of emergency
Maximum platform load capacity-2000 kg
Unit Weight: 1000 Kgs
SPECIFICATIONS
Operation: Electro-Hydraulic
Drive: 3 HP Motor with chain lift mechanism
Power: 3 Phase, 415V, AC, 50HZ
Lift Height: Up to 1700/ 1800/ 1900/ 2000mm
Electrical Safety: Phase Reversal, Limit Switch, Key Switch, Indicator, Emergency Stopper
Platform Width: 2000mm standard (Different Optional)
Platform Length: 4500mm with ramps (Different Optional)
Power Pack: 3 HP Motor, 1440 rpm & Tank Capacity up to 60 Liters
Hydraulic Safety: Hose Failure Safety Valve, Pressure Relief Valve, Flow Control Valve, 24 V DC Solenoid Coil for Lowering
Mechanical Safety: Electro-Magnetic Lock, Car Stopper & Barrier
Retrieval / Parking Time: 40 to 60 second
Advantages at a Glance
Effectively maximizes the utilization of available parking space in a single location, providing more room for your parking needs
Ideal solution for areas with limited ground parking space, high costs, and congestion issues
Boosts return on investment and enhances property values
User-friendly operation with a simple key-turn mechanism
Cost-efficient and easily adaptable for retrofitting
Quick and easy installation with minimal maintenance requirements
Allows for self-parking without the need for a system operator
Equipped with an emergency stop button for immediate halting in case of misuse
Customizable system for any number of car spaces, with the ability to scale infinitely by adding adjacent or tandem stacks
Modular design that can be tailored to fit various scenarios
Highlights:
Standard weight carrying capacity – 2000 kgs. Models for 2500 kg rating also available on request
Our Stack systems are most suited for Residential, Commercial, Mixed Use real estate development, architects, automotive dealers, and commercial parking operators
Hydraulic and mechanical synchronization system with chrome plated cylinders
The parking spaces are accessed horizontally
In common use minimum 3, maximum 8 group type Electro – hydraulic per power pack unit.
Central or individual hydraulic power pack based on client preference and application
Can be dismantled and relocated
System Features:
Our hydraulic Stacker systems are innovative as it is designed to accommodate an expansive array of vehicles including SUVs, crossovers, sedans, and hatchbacks. Whichever car you want parked, our hydraulic car parking systems will work for you.
Bike Stack Parking
The Two Wheeler Parking System is designed for use in commercial buildings, business hubs, shopping malls, and residential apartments where the demand for 2-wheeler parking exceeds the available space. This system is user-friendly and provides an effective solution for maximizing the number of 2-wheeler parking spots. Utilizing a hydraulic system with a telescopic cylinder for platform movement, it minimizes ground space usage and enhances the overall 2-wheeler parking capacity.
Advantages:
Fast assembly, affordable option & suitable for use in basements and outdoor areas.
